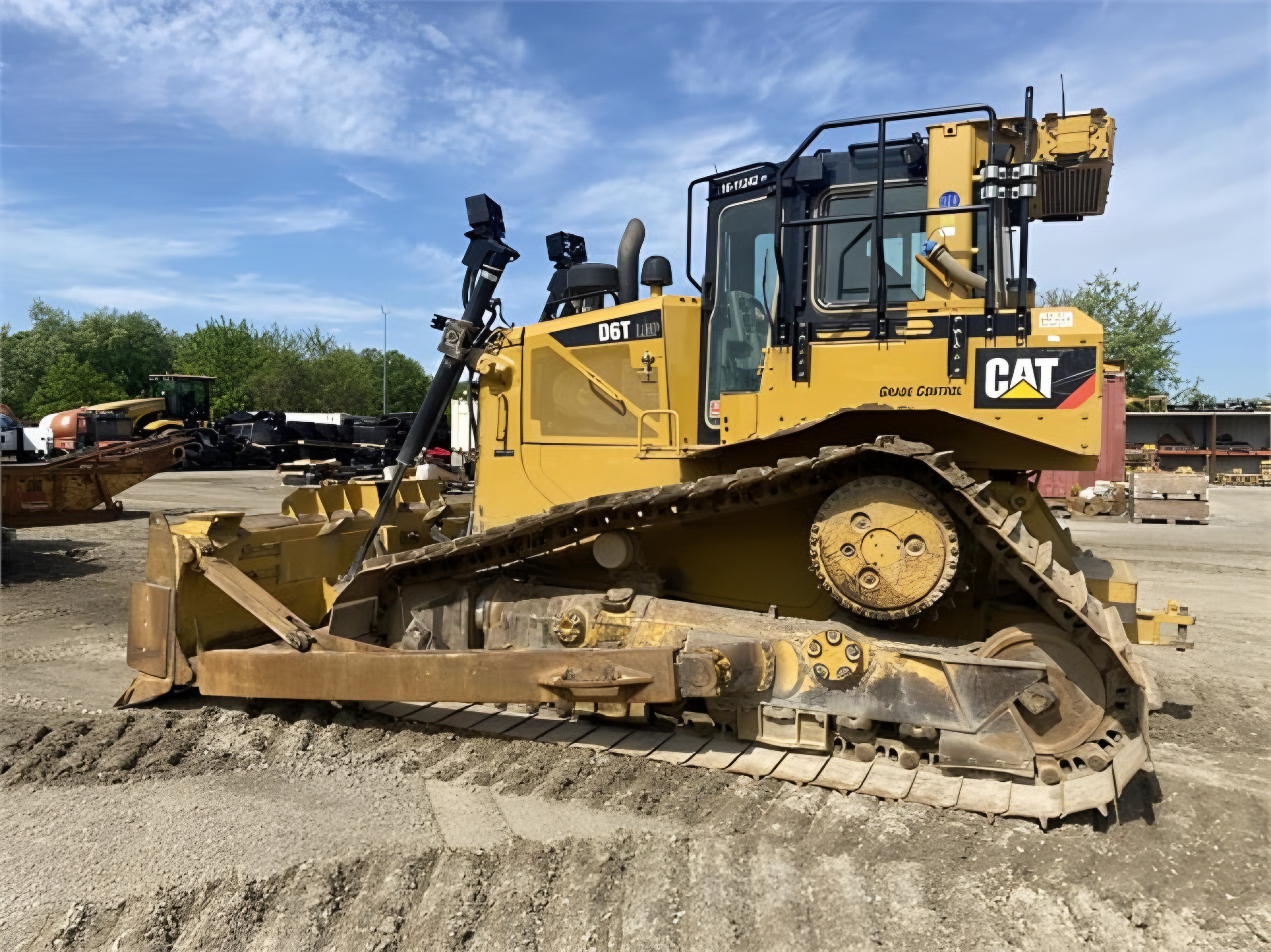

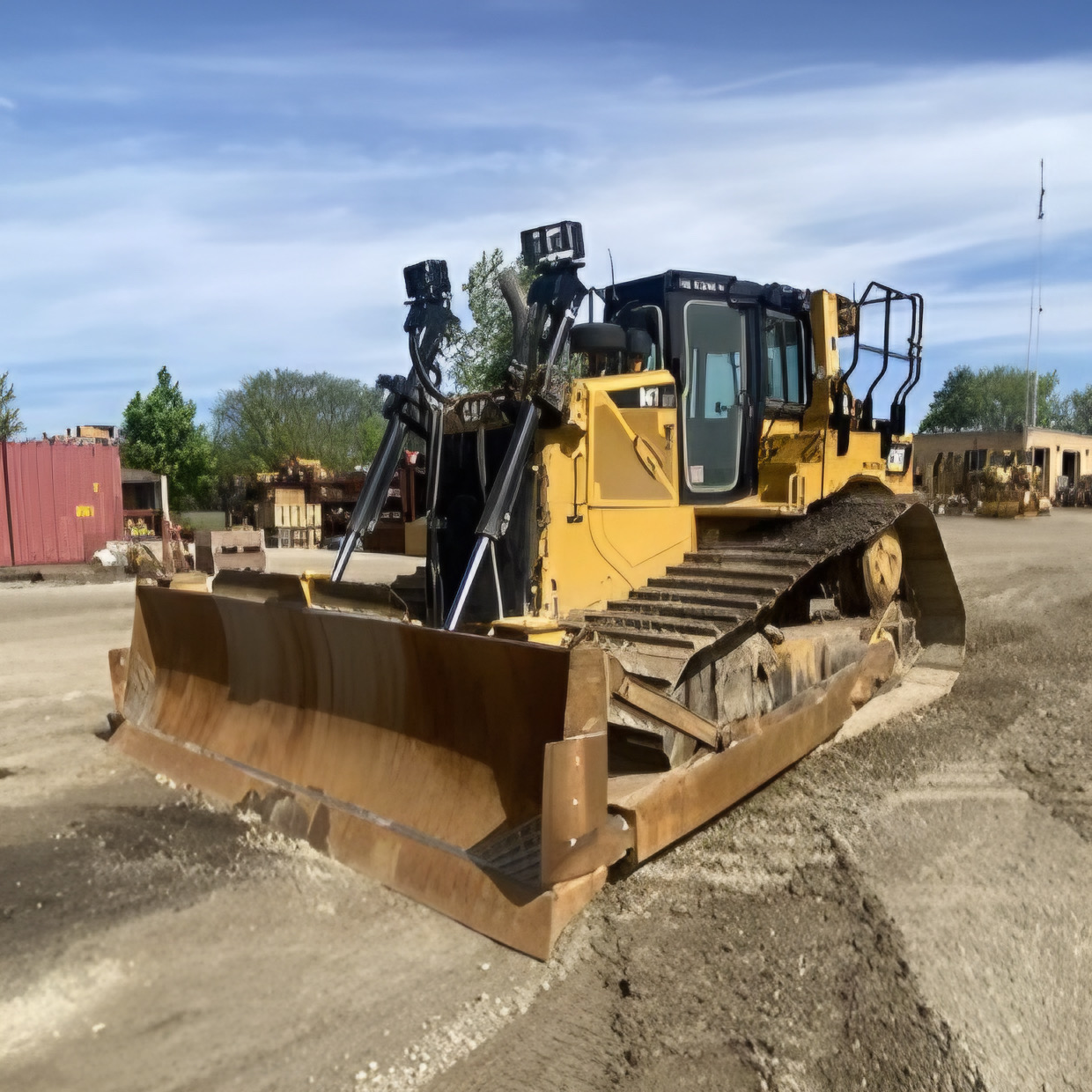

The 2016 Caterpillar D6T LGP (Low Ground Pressure) dozer features a Cat C9.3 ACERT engine (Tier 4 Final) with around 215 hp, an electronically controlled hydrostatic transmission, and specialized low ground pressure undercarriage (e.g., 36-inch shoes, ~4.7 psi) for soft terrain, weighing approximately 54,000 lbs (24,500 kg)

Key specs include a PAT (Power Angle Tilt) blade, hydrostatic drive for smooth control, and Cat GRADE technology for efficiency, with service capacities for fluids and a 110-gallon fuel tank

Engine & Performance Engine: Cat C9.3 ACERT (Tier 4 Final) Net Power: 215 hp (161 kW) Transmission: Hydrostatic, electronically controlled Drawbar Pull: Up to 74,800 lbs (332.7 kN) Undercarriage & Dimensions (LGP) Operating Weight: Approx

54,019 lbs (24,515 kg) Ground Pressure: ~4.7 psi (32.4 kPa) Shoe Width: 36 inches (915 mm) Track Gauge: 92.9 in (2,360 mm) Blade (Standard LGP) Type: Power Angle Tilt (PAT) Blade Capacity: ~5.9 cu yd (4.5 m³) Width: 161 in (4,090 mm)
