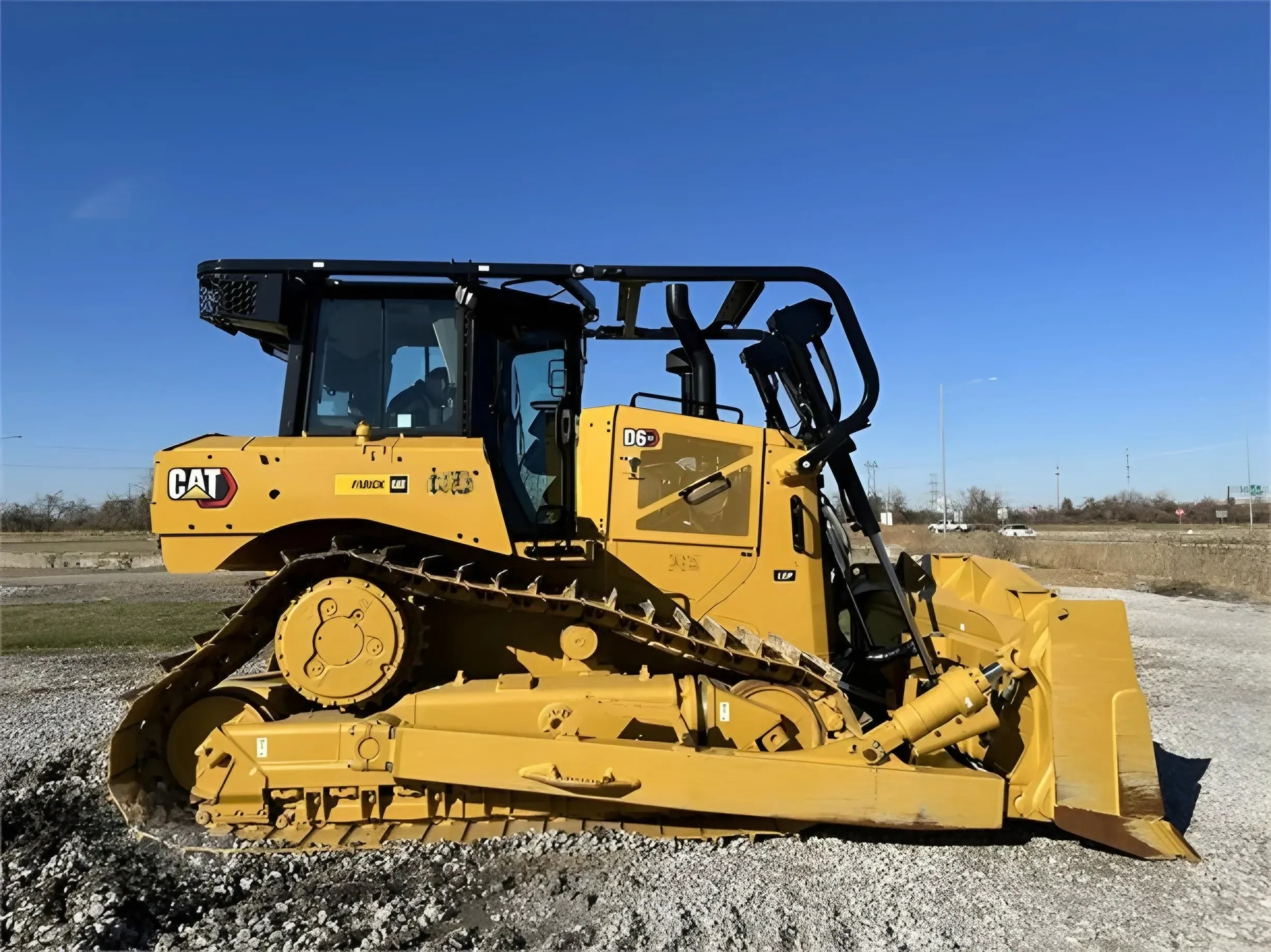

The 2023 Caterpillar D6 XE LGP (Low Ground Pressure) is an electric-drive dozer featuring a Cat C9.3B engine (around 215 hp), offering high efficiency and torque for soft underfoot conditions with low ground pressure (around 6-8 psi) due to wide tracks (30-36 in), and typically weighs over 50,000 lbs, equipped with advanced tech like VPAT blades and comfortable cabins

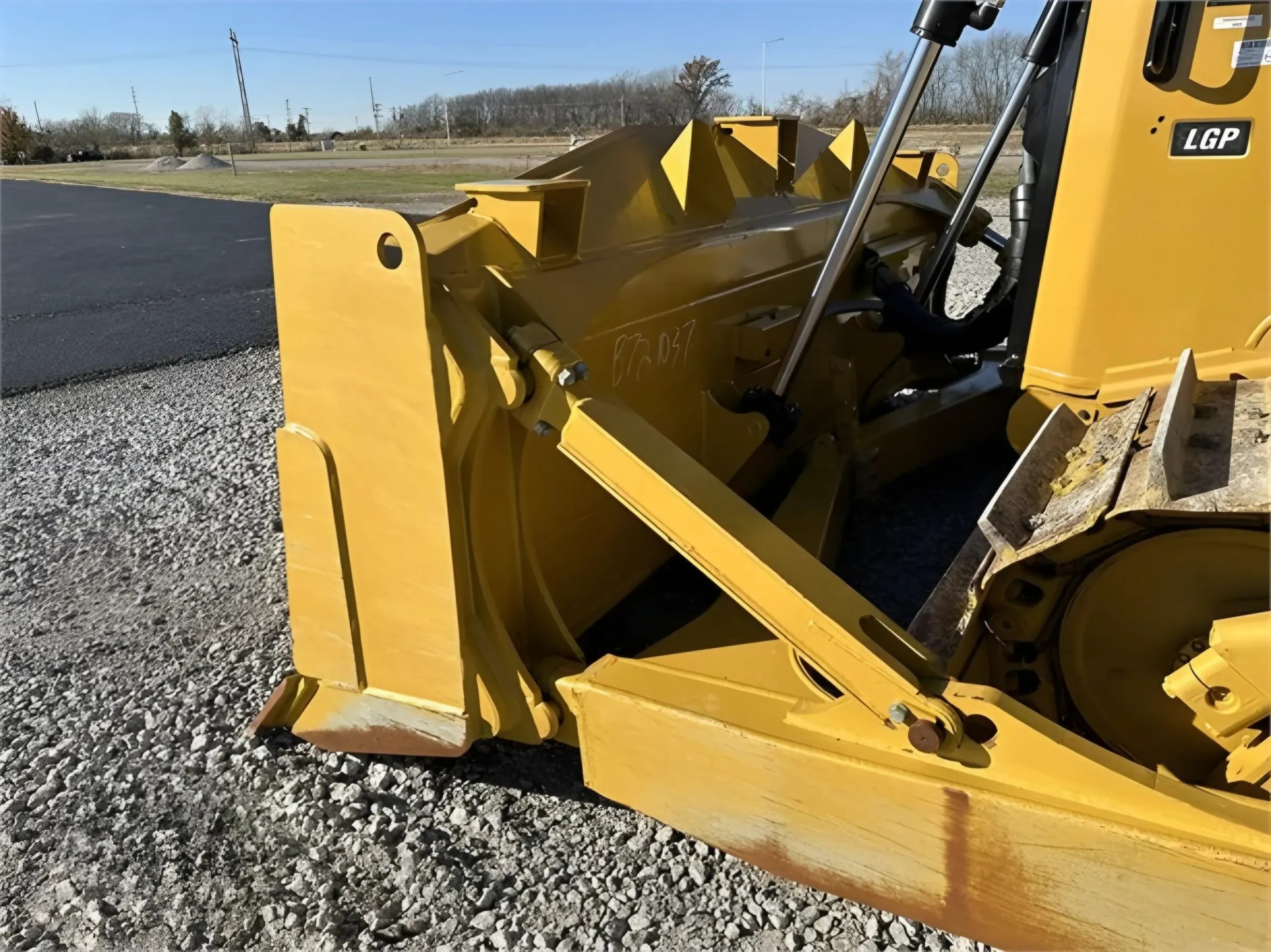

Key Specifications: Engine: Cat C9.3B, ~215 hp (161 kW). Transmission: Electric drive, providing strong torque and fuel savings. Operating Weight: Around 51,000 - 51,300 lbs (23,285 kg) for 30-inch LGP. Ground Pressure: Low, ~5.9 psi (41 kPa) for 30-inch VPAT, ~6.6 psi (45 kPa) for 30-inch SU. Track Shoes: Available in 30-inch (760 mm) or 36-inch (915 mm) for LGP configurations. Blade: Variable Pitch Angle Tilt (VPAT) or Semi-Universal (SU) available. Blade Capacity: Varies by blade, e.g., ~5.9 yd³ (4.5 m³) for VPAT

Features: Electric Drive: Delivers more torque and speed in mid-range, saving fuel. Advanced Undercarriage: Designed for excellent flotation in soft soil. Cabin: Premium, often with heated/ventilated seats, LED lights for operator comfort and visibility

Performance in Soft Conditions: The XE's electric drive and LGP setup provide superior performance in soft ground, using wide tracks to minimize ground pressure, making it ideal for swampy or delicate terrains
