The 2004 CATERPILLAR DP70 is a heavy-duty diesel forklift with a load capacity of 7,000 kg (15,432 lbs) and a an approximate operating weight of 9,300 kg (20,500 lbs)

It is powered by a Mitsubishi S6S or Kubota V3800 diesel engine, depending on the specific variant

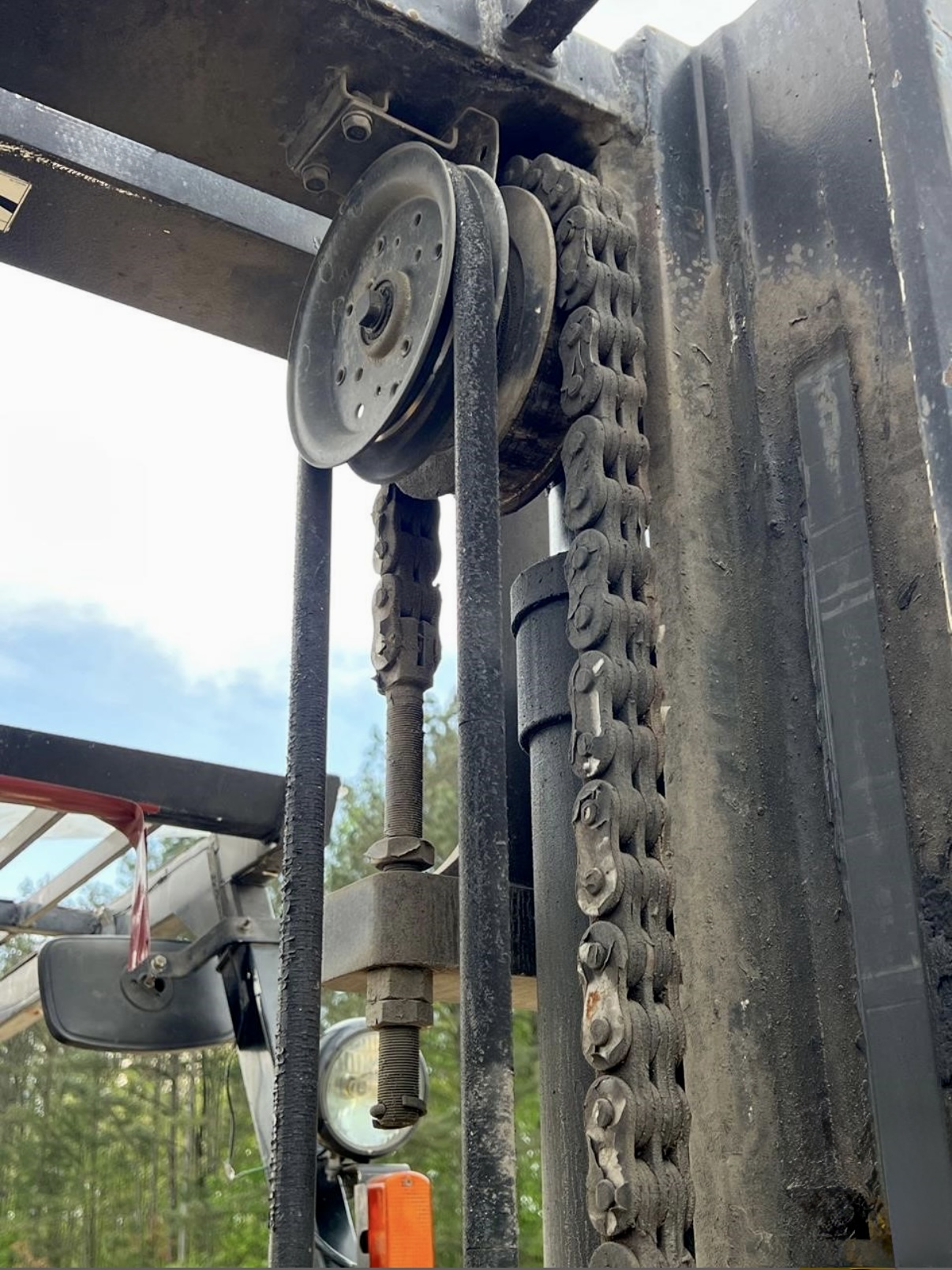

Specifications Load Capacity: 7,000 kg (15,432 lbs). Engine: Mitsubishi S6S-T or Kubota V3800 diesel. Power Output: Mitsubishi engine at approximately 70 kW (94 HP), Kubota at around 112 HP. Transmission: 2-speed automatic power shift. Tires: Pneumatic. Approximate Weight: 9,300 kg (9.3 tons). Maximum Lift Height: Varies by mast type, commonly 157 inches (4.0 m) up to over 314 inches (8.0 m) with a triplex mast. Approximate Dimensions: Length: 4,800 mm (189.0 in), Width: 2,170 mm (85.4 in), Height (overhead guard): 2,420 mm (95.3 in), Turning Radius: 3,310 mm (130.3 in)

Key Features The 2004 CATERPILLAR DP70 is noted for its durability and robustness, featuring a solid steel frame and a fully floating drive axle for demanding industrial use

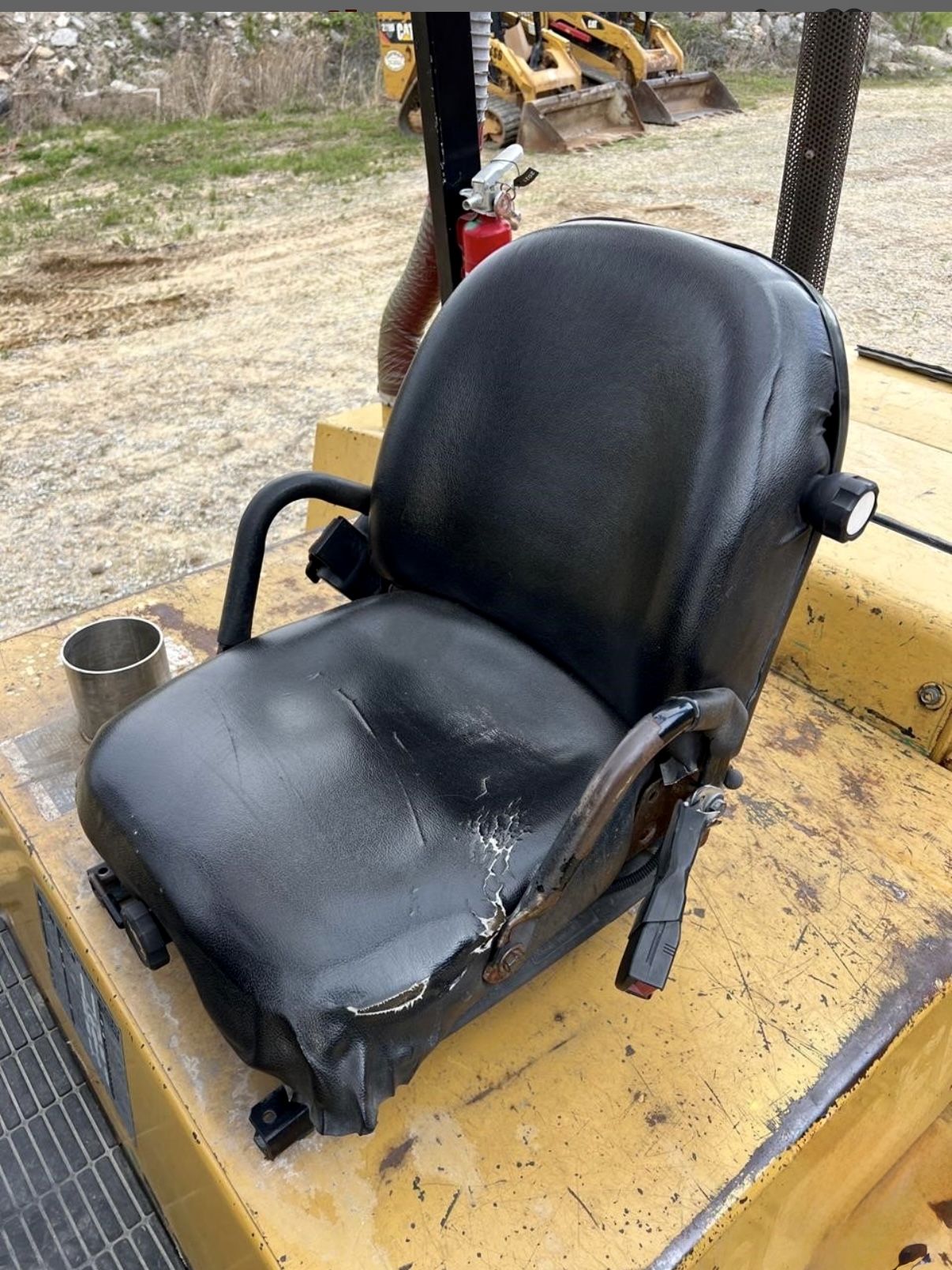

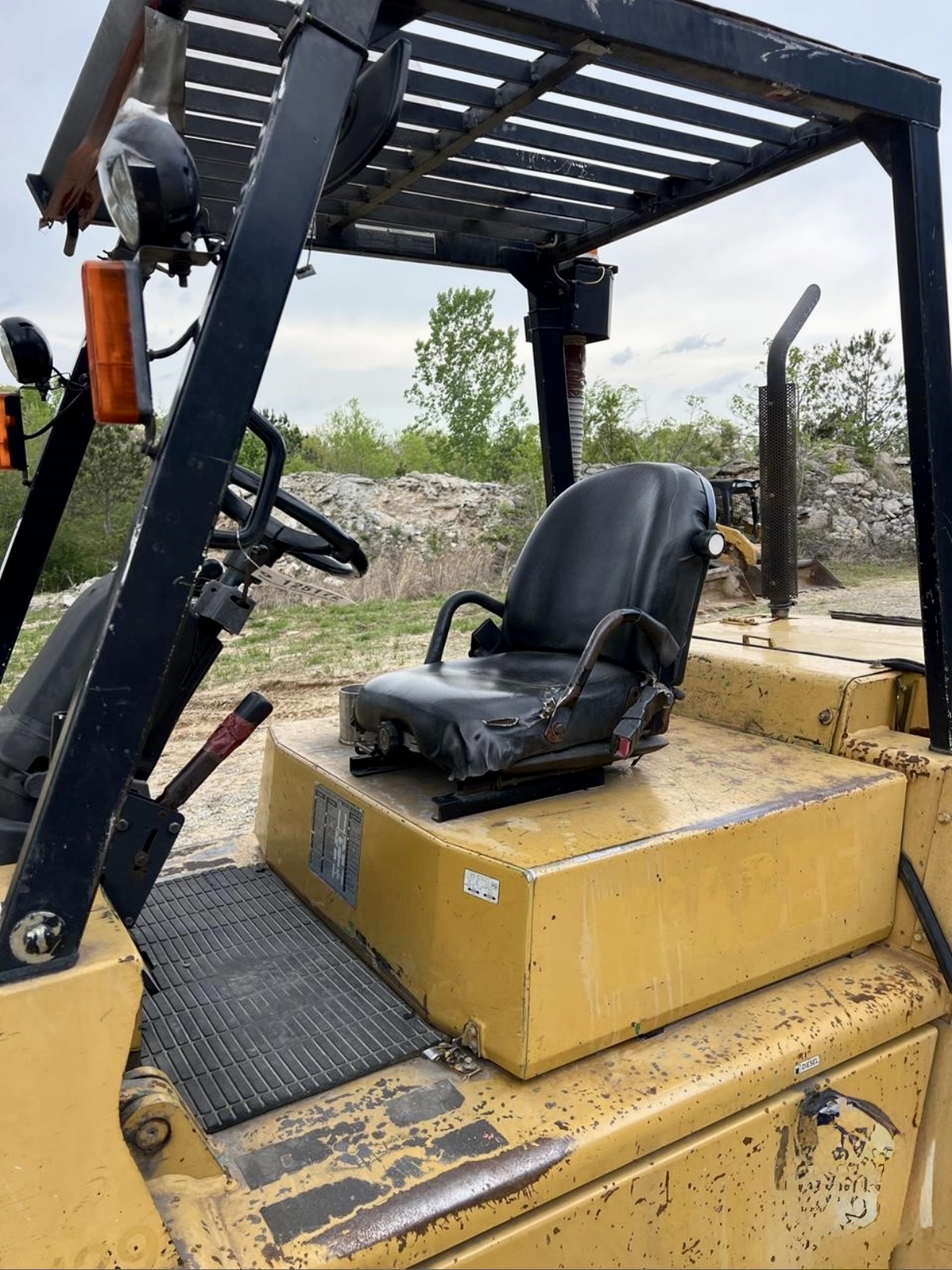

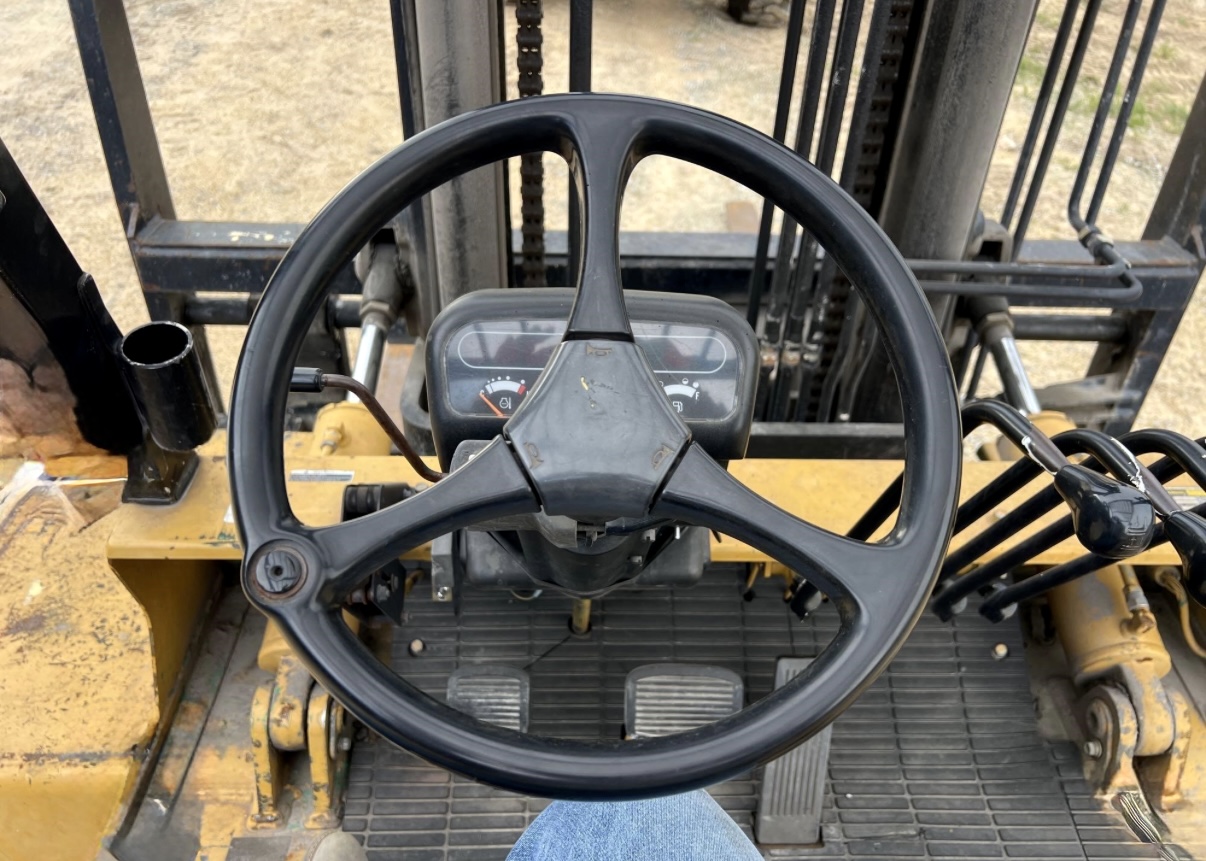

It includes ergonomic and safety features such as an adjustable seat, hydrostatic power steering, a low footstep, and a Presence Detection System (PDS)

The design also prioritizes serviceability with features like boltless floorboards for easier maintenance
