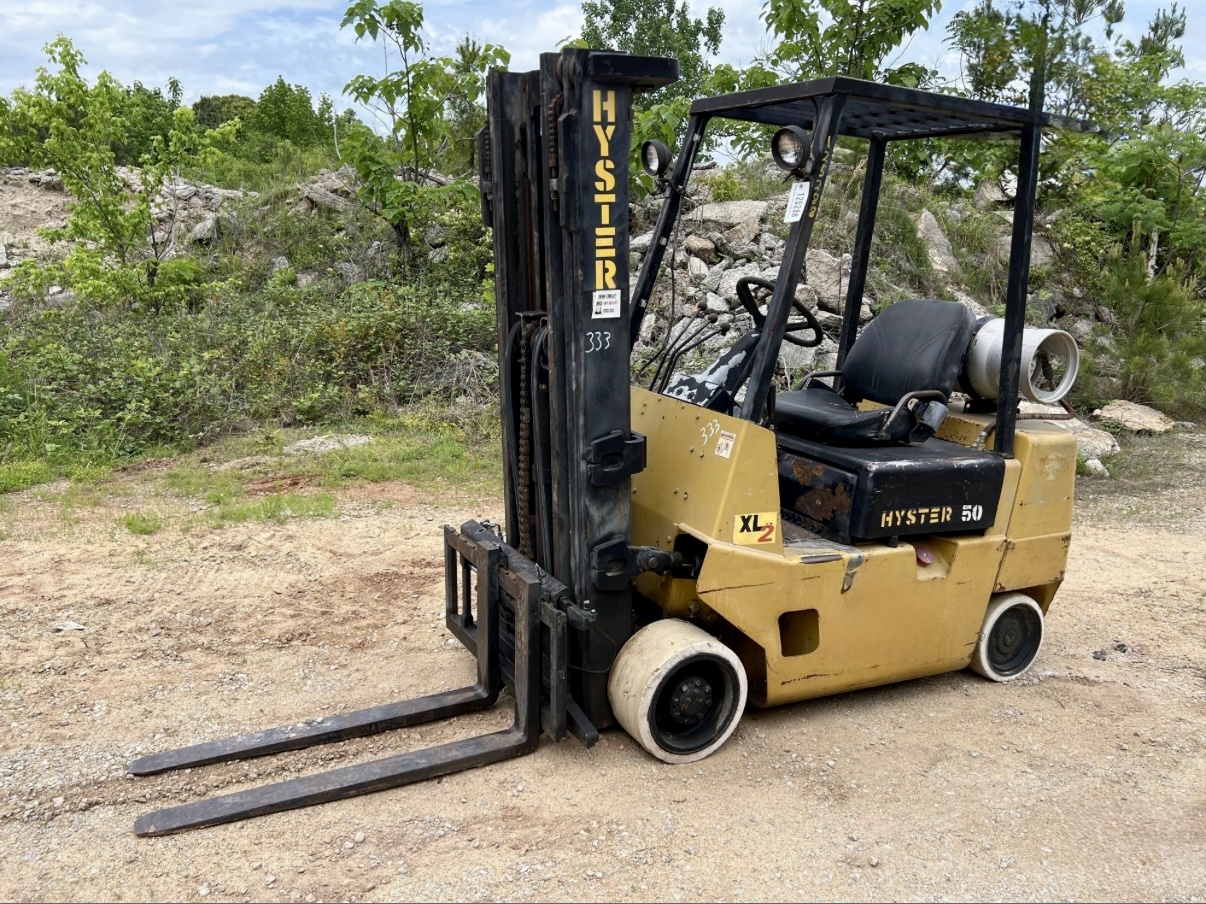

The 1993 Hyster S50XL is an internal combustion, cushion-tire forklift from the S40–60XL series, manufactured between 1984 and 1996

It is primarily designed for indoor warehouse and industrial applications

Key Specifications Load Capacity: 5,000 lbs (2,268 kg) at a 24-inch load center. Fuel Type: Liquid Propane Gas (LPG). Tire Type: Cushion (Solid) tires. Engine: 4-cylinder internal combustion; common configurations for this era included Mazda 2.0L or GM 3.0L engines. Transmission: Powershift (Monotrol pedal for direction changes). Mast Type: Typically a 3-stage (Triplex) Vista mast. Lift Height: Standard max lift height of approximately 187–189 inches (approx

15.7 ft)

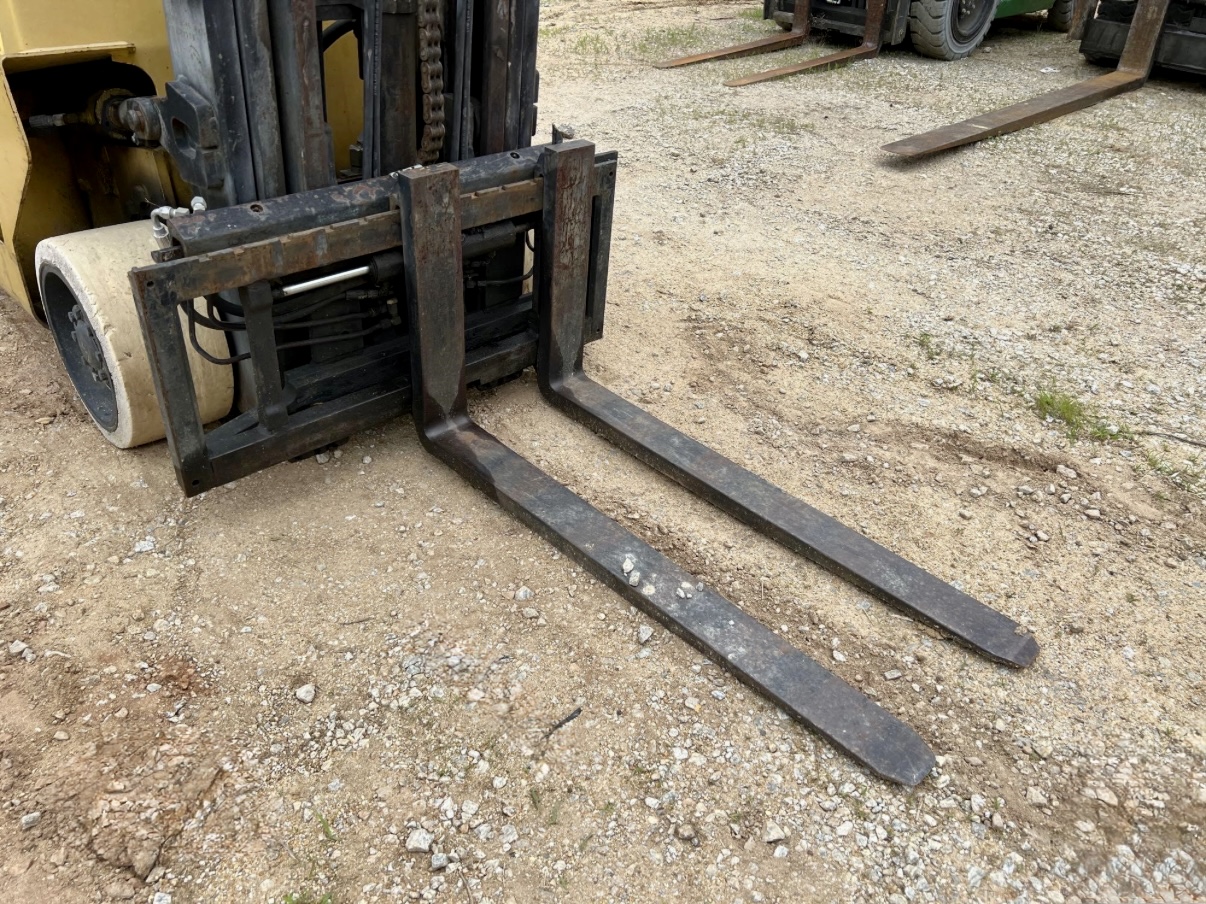

Dimensions & Weights Operating Weight: Approximately 8,150 lbs. Overall Length: 82.8 inches (to fork face). Overall Width: 41.4 inches. Height (Top of Guard): 83 inches. Wheelbase: 59 inches. Standard Fork Length: 42 inches

Operating Systems Hydraulic Pressure: Relief valve pressure set to approximately 2,250 psi. Steering: Hydraulic power steering. Brakes: Hydraulic service brakes with a mechanical hand-operated parking brake.
